SPECIFICATIONS

PRODUCT INFORMATION

BRONCO XTREME MINI 10 is for those who are looking for a more compact version of our powerful flagship model XTREME 11.

Packed with power but with a smaller chassis frame, you can now get around in narrower areas and it is also a good starter pack for those who have just started on the e-scooter journey!

A closer look

• Motor power: Peak 2800W tubeless BLDC motor

• Controller: Dual 30A sinewave controller

• Charging time: 14 hours from 0% (1pc 2A charger included, appropriate charger will be provided according to your shipment country)

• Maximum mileage: 70-80km (With a 65kg load, at a constant speed of 25km/h, road conditions might affect the total mileage)

• Maximum speed: 75km/h (Varies according to rider's weight and road conditions)

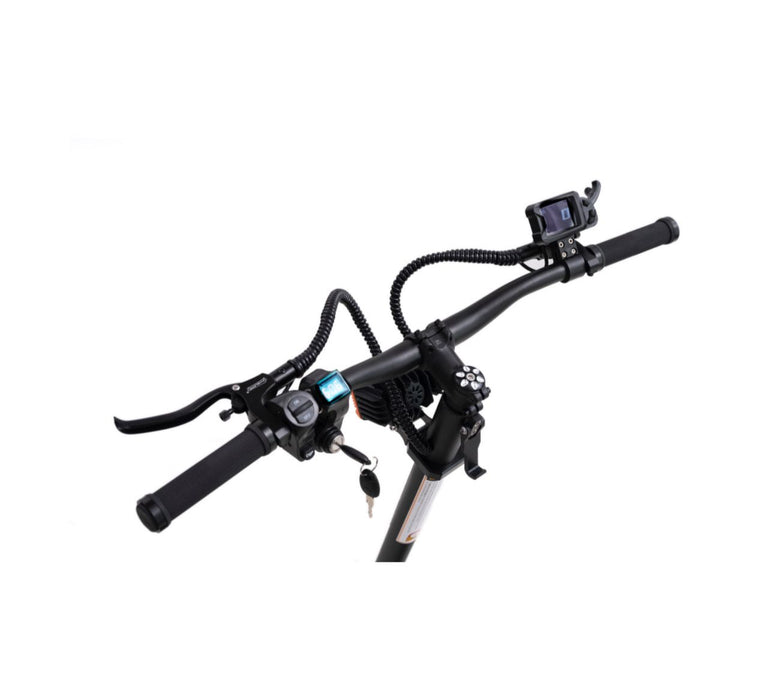

• Handlebar width: 680mm Non-foldable handlebar

• Gradeability: 15-20 Degrees (Load, road conditions, battery level, and temperature can affect the gradeability)

• Maximum load: 120kg

• Product weight: 43kg

• Display screen: NEW LCD Standard display screen (Battery level, TRIP, ODO, speed display and mode change)

• LED setup: Side panels with RGB LED lighting

• Safety lighting system: Rear braking light and front extra bright fog light

• E-brake system: Option to turn on/off electric brake (ABS E-brake)

• Braking system: Single piston DYISLAND hydraulic brakes (140mm disc)

• Front and rear suspension: 125mm 2000 LBS adjustable air suspension (24 clicks, adjustable rebounce)

• Tires: 10" TUOVT tires

• Product material: 6061-T6 Aviation aluminum Fully forged and detailed CNC

• Mudguards: Front and rear polypropylene mudguards

• Steering system: NOT INCLUDED (to be purchased separately, click here to purchase)

• Safety electric horn: BE HEARD with a LOUD electric horn installed at the front of the scooter for safety

• Smart battery management system (BMS): Comes equipped with Bluetooth BMS that can be connected to your mobile device.

• Key ignition start: Comes with key ignition and a pair of keys for safety

• IP54 rating: Certified with IP54 rating (water resistance)

Specifications updated as of 29 November 2023. The specifications can be changed by the manufacturer without any notice if there is a need to improve the quality, build and safety for users OR to adhere to local regulations and laws.

DELIVERY INFORMATION

Current production lead time: 14-21 working days from date of order

Air shipping Lead Time: 14-21 days after production is complete

Sea/train shipping Lead Time: 2-3 Months after production is complete

PLEASE READ THE FAQs HERE BEFORE PURCHASING.

*Please note that we have removed the single motor function in order to protect the lifespan and health of the controller.
