BRONCO XTREME 11 (72V 35Ah)
NO REFUND ONCE DELIVERED! Warranty within 7 days after delivery!
FREE SEA DELIVERY FOR ANY SCOOTER ORDER!
- Battery and Frame Are Delivered Separately
- 1-2 Working Weeks to Dispatch
- Description
- Specifications
- Important Notes
-
INTRODUCING FIRST MODEL OF BRONCO MOTORS THAT ENCOMPASSES A ROBUST FORGED PART AND POWER, ALL IN ONE SCOOTER. LOOKING FOR SOMETHING THAT IS TOUGH AND DECKED WITH POWER?
UNPRECENTED

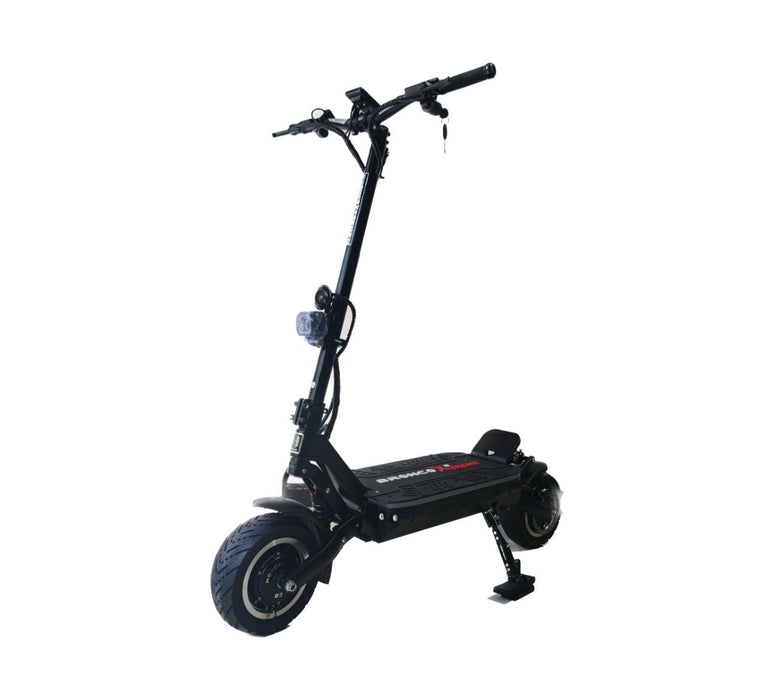

Introducing the All-New 72V (Full Charge 84V) BRONCO XTREME 11 SPORT.
Elegant, sporty, versatile. An electric scooter for a new era.
ALL XTREME 11 WILL COME WITH HORN AND BRIGHTER FRONT LIGHT!
-
Battery Specifications
Battery: 72V 35Ah, LG/PANASONIC
Output Connectors: XT90 connectors
Input Connectors: XT30 Dual GX16 charging ports
Motor Specifications
Peak 8400W brushless direct drive hub motor with 4.0mm² Teflon® Wires
Split-hub TUBELESS modular rim design with easy-tire changing technology
Controller Specifications
IMPROVED 2-in-1 GEMINI 72V 50A*2 sinewave controller
Charging Time
1x 5A charger included (7-8 hours)
Maximum Mileage
70-90KM (At 65kg load, at a constant speed of 25km/h, flat road condition, T&C applies)
Maximum Speed
105km/h (Maximum speed varies according to rider's weight and road conditions)
Handlebar
700m Non-Foldable Bicycle Handlebar
Gradeability
Around 25-30 Degree (Load, road conditions, battery level and temperature can affect the gradeability)
Maximum Load
120kg
Product Weight
48kg
Display Screen
Bronco TFT intelligent display (Battery level, TRIP, ODO, speed display and mode change)
Front/Rear Lights/Horn
Front Eagle Eye White Still Lights 4x
Rear Eagle Eye Red Still Brake Lights 2x, Rear Eagle Eye Red Still Lights 2x
Front Fog Light 1x + Horn 1x
E-brake System
Option to turn on/off electric brake (ABS E-brake)
Brakes
NUTT hydraulic brakes (160mm Disc)
Front and Rear Suspension
Front: 125mm 2000LBS Adjustable Coil suspension (24 clicks)
Rear: 165mm AOY-36RC Adjustable Air Suspension
Adjustable re-bounce of suspension
Tires
11" CST wide profile tires
Product Material
6061-T6 Aviation aluminum, (Hot Forged)
Mudguards
Carbon Fibre, Polypropylene (PP)
Standard Steering Damper
Included in set
Specifications updated as of 8 March 2022. The specifications can be changed by the manufacturer without any notice if there is a need to improve the quality, build and safety for users OR to adhere to local regulations and laws.
-
Current production lead time: 14-21 working days from date of order
Plane Delivery Lead Time: 14-21 days after production is complete
Sea/Train Delivery Lead Time: 1-2 Months after production is complete
PLEASE READ BEFORE MAKING PURCHASES. WE ARE NOT RESPONSIBLE IF YOU DID NOT READ!
https://broncomotors.co/pages/easy-faqs
Please note that we have removed the single motor function in order to protect the lifespan and health of the controller.
